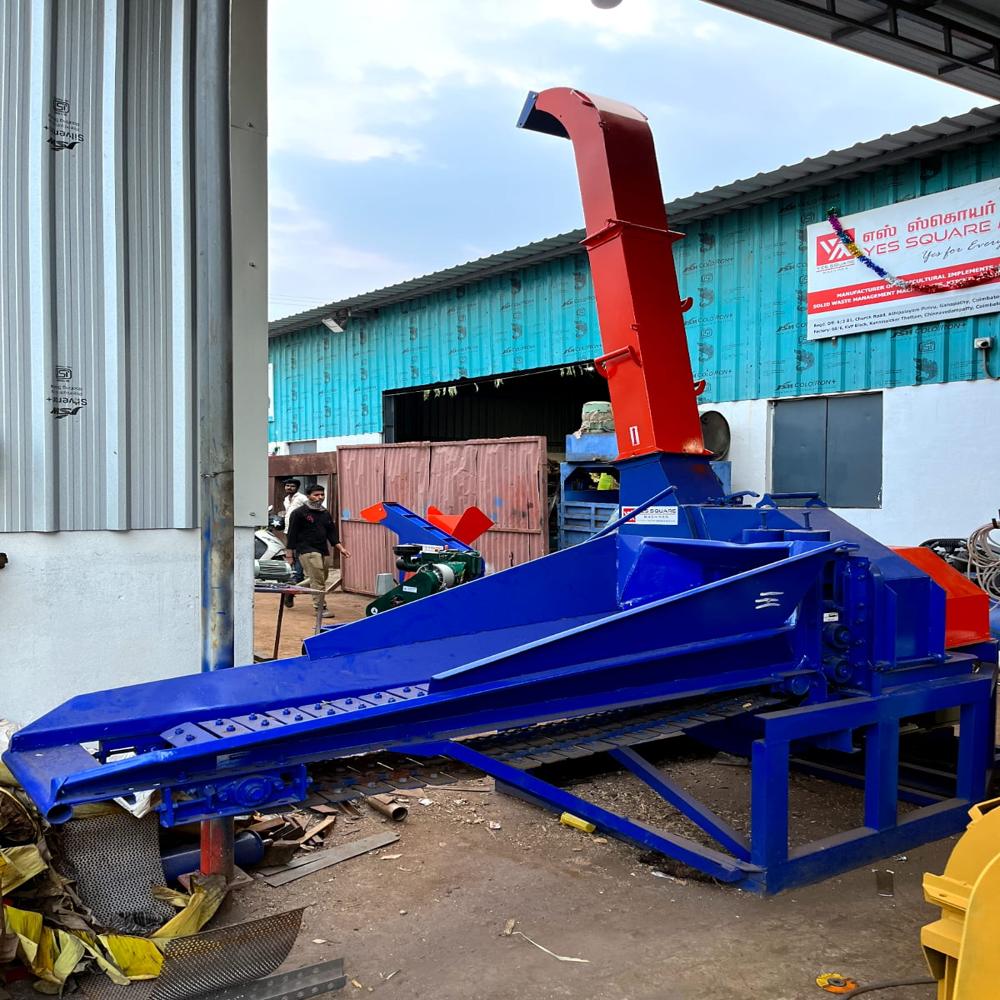

Karanataka Wood Chipper 50Hp Machine with Conveyor

Name: Karanataka Wood Chipper 50Hp Machine with Conveyor
Brand: YES SQUARE MARKETING
Price: 550000 INR
Availability: InStock

550000 INR/Number

Get a Price/Quote

Product Details:

Drive Direct drive with v-belt
Operating Temperature -10C to 45C
Cooling System Air cooled motor
Control System Push button control panel
Production Capacity 3-6 TPH
Frame Type Reinforced welded steel
Noise Level 85 dB
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Karanataka Wood Chipper 50Hp Machine with Conveyor Price And Quantity

Price 550000 INR/Number
Minimum Order Quantity 1 Number

Karanataka Wood Chipper 50Hp Machine with Conveyor Product Specifications

Machine Type Chipper with Conveyor
Features Attached conveyor belt, rugged construction, overload protection, easy maintenance
Usage & Applications Chipping logs, branches, agro-waste; ideal for wood processing units and biomass fuel production
Accuracy High precision chipping
Frequency 50 Hz
Weight (kg) 1850 kg
Model No KWC-50HP-CONV
Lubricating System Grease lubrication
Color Sky Blue & Yellow
Operating Type Semi-automatic
Pressure Standard atmospheric
Power Rating 37.3 kW
Connectivity Options Standard electrical interfaces
Plastic Processed N/A (For wood only)
Surface Treatment Powder coated
Drive Direct drive with v-belt
Operating Temperature -10C to 45C
Power Source Electric Motor
Power 50 HP
Cooling System Air cooled motor
Control System Push button control panel
Product Type Wood Chipper with Conveyor
Production Capacity 3-6 TPH
Frame Type Reinforced welded steel
Noise Level 85 dB
Motor Power 50 HP
Dimension (L*W*H) 3250 mm x 1500 mm x 1800 mm
Voltage 440 V
Technology Heavy-duty shredding with steel rotary blades

Rotor Diameter 600 mm
Safety Features Emergency stop switch, protective covers
Installation Type Floor mounted
Maintenance Access Removable side covers
Feeding System Auto feed hopper
Discharge Height 1500 mm
Finish Type Corrosion resistant paint
Blade Material High Carbon Alloy Steel
Maximum Log Diameter Up to 200 mm
Number of Blades 4 Rotating + 1 Fixed
Rotor Weight 300 kg
Conveyor Type Rubber belt, 3 meters length

Karanataka Wood Chipper 50Hp Machine with Conveyor Trade Information

Supply Ability 5 Number Per Month
Delivery Time 15 Days

Product Description

Discover the new release Karnataka Wood Chipper 50Hp Machine with Conveyor-a rarefied solution engineered for those who seek top-notch performance in wood processing. Select high carbon alloy steel blades (4 rotating + 1 fixed), each resplendent in design, ensure high precision chipping up to 200 mm log diameter. With an auto feed hopper and robust rubber belt conveyor, this semi-automatic chipper delivers 3-6 TPH capacity. Finished with corrosion-resistant paint and powder coating, the KWC-50HP-CONV brings reliability, personalization, and safety-ideal for modern industry standards.

Versatile Surface Application & Resplendent Usage

The Karnataka Wood Chipper 50Hp Machine with Conveyor is purpose-built for a wide surface application, particularly excelling in wood processing units. Specifically designed to chip logs, branches, and agro-waste, it supports a variety of industrial processes, including biomass fuel production. Engineered to operate on both small and large-scale projects, it ensures efficient and consistent output, providing a top choice for manufacturers seeking improved handling of woody materials and agro-waste with precision and reliability.

Swift Delivery & Broad Market Availability

Our Karnataka Wood Chipper 50Hp Machine with Conveyor is available at a competitive sale price and can be shipped efficiently to your location. The shipment process is streamlined for minimal delay, ensuring timely delivery. Delivery charges vary based on destination, with prompt dispatch across India-our main domestic market-and notable availability in major export markets globally. With each sale, we guarantee reliable support, allowing your operations to commence without hindrance or undue waiting periods.

FAQ's of Karanataka Wood Chipper 50Hp Machine with Conveyor:

Q: How does the Karnataka Wood Chipper 50Hp Machine optimize wood processing tasks?

A: This machine utilizes heavy-duty shredding technology with high carbon alloy steel blades for high-precision chipping, efficiently processing logs, branches, and agro-waste up to 200 mm in diameter. The auto-feed system and conveyor further streamline workflow.

Q: What safety features are included in the wood chipper for operator protection?

A: Designed with an emergency stop switch and protective covers, the chipper prioritizes user safety. Its sturdy, floor-mounted structure and reinforced welded steel frame add further protection during operation.

Q: Where can the Karanataka Wood Chipper 50Hp Machine be exported or shipped?

A: We export and supply the wood chipper across major domestic markets in India and internationally. Specific export destinations are available on inquiry, with reliable shipment options to suit customer requirements.

Q: What is the installation process for this wood chipper model?

A: Installation is straightforward-the machine is floor-mounted and arrives with removable side covers for maintenance access. Standard electrical interfaces provide seamless connection to your facility's existing infrastructure.

Q: When is maintenance required, and how accessible are the chipper's components?

A: Routine maintenance is simplified with removable side covers, allowing quick access for inspection, lubrication, and upkeep. This design ensures minimal downtime for your operations.
